Q’STRAINT Restraint Systems
Q'STRAINT QRT-Series
The world's most trusted wheelchair restraint systems. Self-tensioning retractors with groundbreaking load capacity, designed for modern wheelchair accessible vehicles.
Q'STRAINT has remained the global leader in wheelchair securement for over 30 years. Their QRT-Series retractors represent the pinnacle of safety engineering, combining innovative energy management designs with advanced material technologies.
Every Tripod Mobility conversion includes Q'STRAINT restraints as standard equipment. With self-tensioning technology that automatically eliminates slack, these systems provide superior protection compared to conventional 4-point tie-downs.
Key Advantage: QRT-550E reduces wheelchair excursions in collision events by up to 50% compared to traditional 4-rear-retractor systems, significantly enhancing passenger safety.

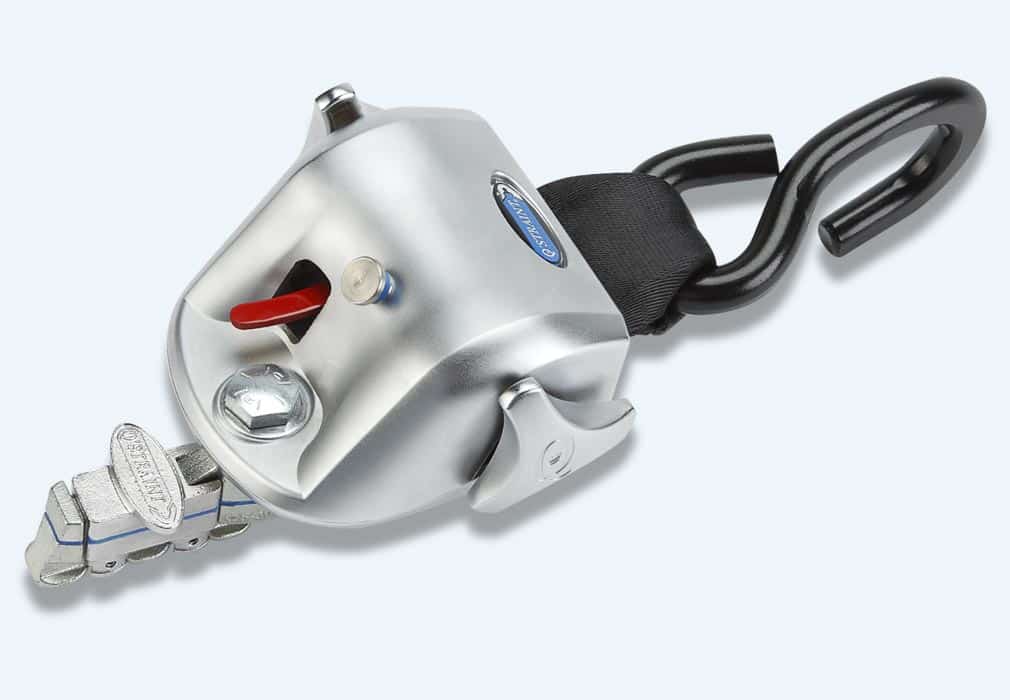

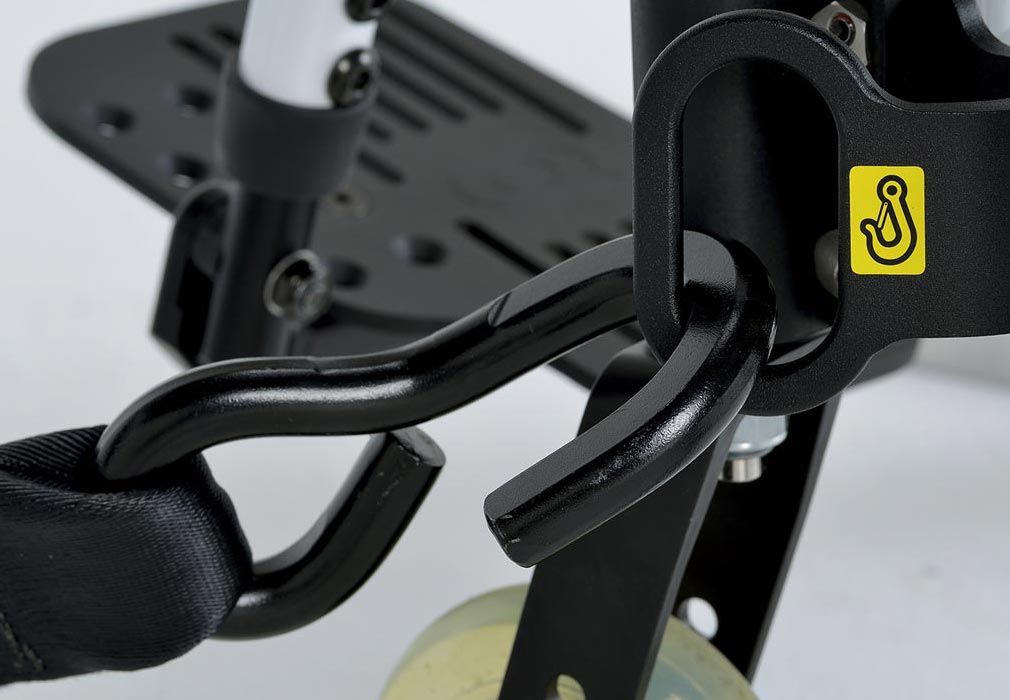

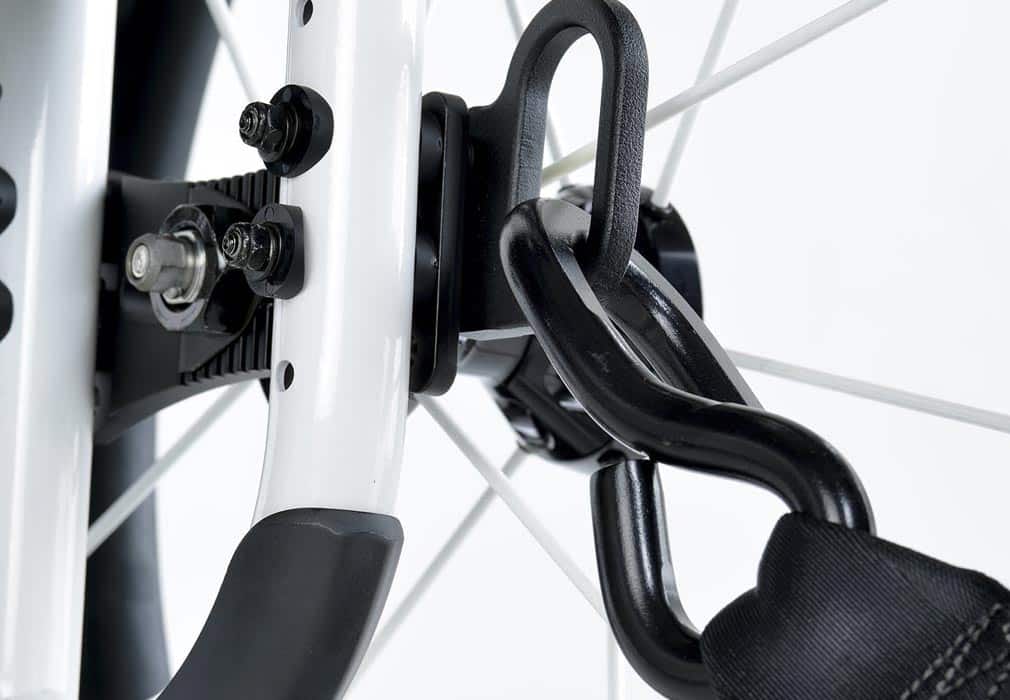

QRT-350E
150kg Maximum Wheelchair WeightSpecifications
- Load Capacity 150 kg
- Webbing Width 58mm high-strength
- Interlocking Teeth 25 teeth
- Profile Height Low profile, no bracket
- Construction Hardened steel, zinc coated
Key Features
- Ideal for WC19 wheelchairs with integrated lap belts
- Smaller footprint for flexible placement
- Positive Lock Indicator (PLI) for L-Track
- J-Hook attachments for universal compatibility
- Enlarged foot release for easy operation
- Fits under most footrests

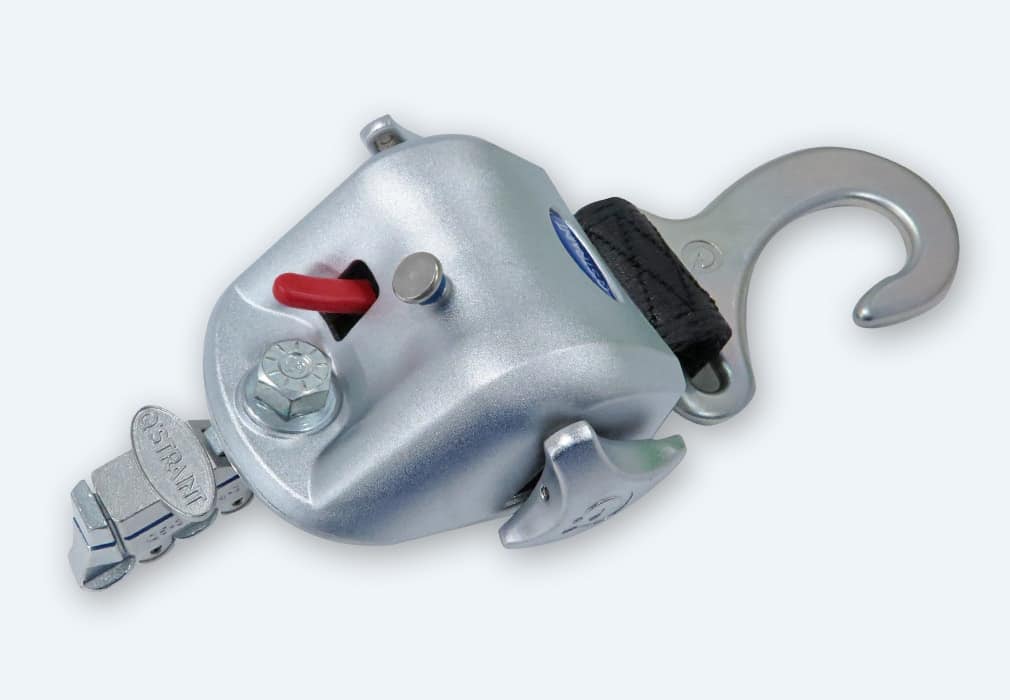

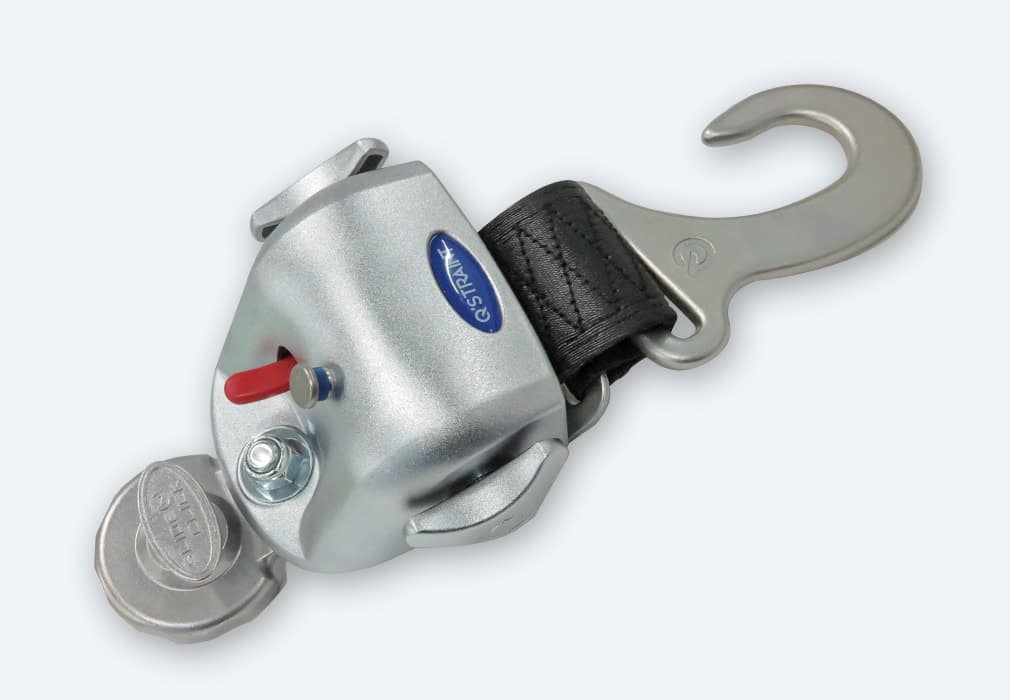

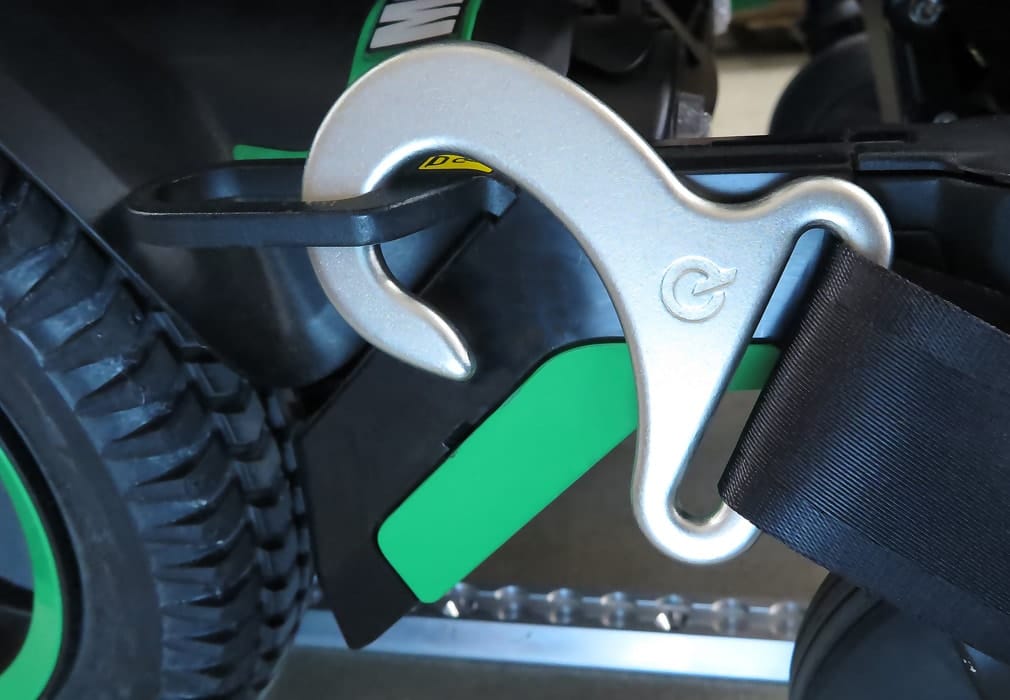

QRT-550E
200kg Maximum Wheelchair WeightSpecifications
- Load Capacity 200 kg
- Webbing System Double 58mm loops
- Interlocking Teeth 25 teeth
- Energy Management Advanced material tech
- Hook Type Heavy-duty flat hook
Key Features
- World's first 4-point heavy-duty automatic system
- Halves excursion in collision vs 4-rear systems
- Secures heaviest modern wheelchairs
- Double webbing loop design
- 360° rotation Slide 'N Click option
- Space-efficient vs 6-point systems
Product Gallery
Floor Anchorage Options
QRT-Series retractors install quickly in almost any vehicle fitted with proper anchorage systems. Tripod Mobility conversions include integrated L-Track systems for maximum flexibility.

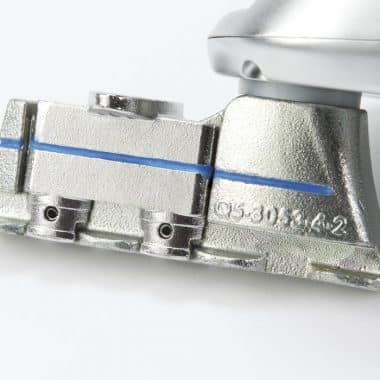

L-Track with PLI
Patented Positive Lock Indicator clearly shows when fitting is locked. Ideal for adjustable positioning and quick securement.

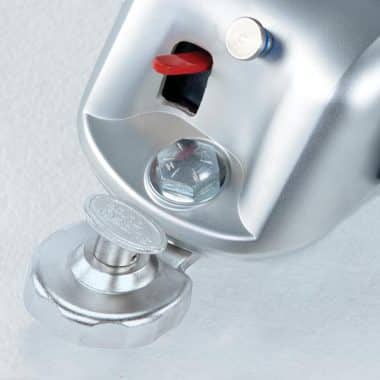

Slide 'N Click
360° rotation eliminates anchorage alignment guesswork. Single-bolt assembly for quick installation and universal compatibility.
Crash Tested & Certified
All QRT-Series retractors are dynamically sled tested at 30mph (48kph), 20G and fully comply with international safety standards.
* Always demand up-to-date crash testing from a certified facility
Download Technical Brochure
Complete specifications, installation guides, and compliance documentation.
Download Q'STRAINT Brochure-
