UPFRONT – front row seating for wheelchairs

When you, as a wheelchair user, want to drive independently or ride along as a passenger on the first row, Tripod Mobility has the perfect solution for you.

Lowering the floor creates more interieur space. The lowered floor does not hamper maneuverability meaning speed bumps are no issue. Thanks to the lowered floor most wheelchairs can easily access the vehicle and settle behind the wheel. Up front there is even space for two wheelchairs side by side.

The original front seats are made removeable by mounting them on a frame with transport wheels. So when someone else want to drive they are easily replaced and secured.

Which solutions one needs to help operate the vehicle are dependent on local rules, regulations and availability. What is necessary in your situation needs to looked at carefully. Solutions like hand brake and gas or multifunctional steer operation are not included in an UpFront. Your local conversion specialist will be happy to help.

Conversion to create an UpFront are possible for models with length 4,75m and wheelbase of 2,97m. Available for petrol as well as diesel models of:

MODELS SUITABLE FOR UPFRONT

RDW Tested according to European requirements and approved by the Dutch Vehicle Authority (RDW)

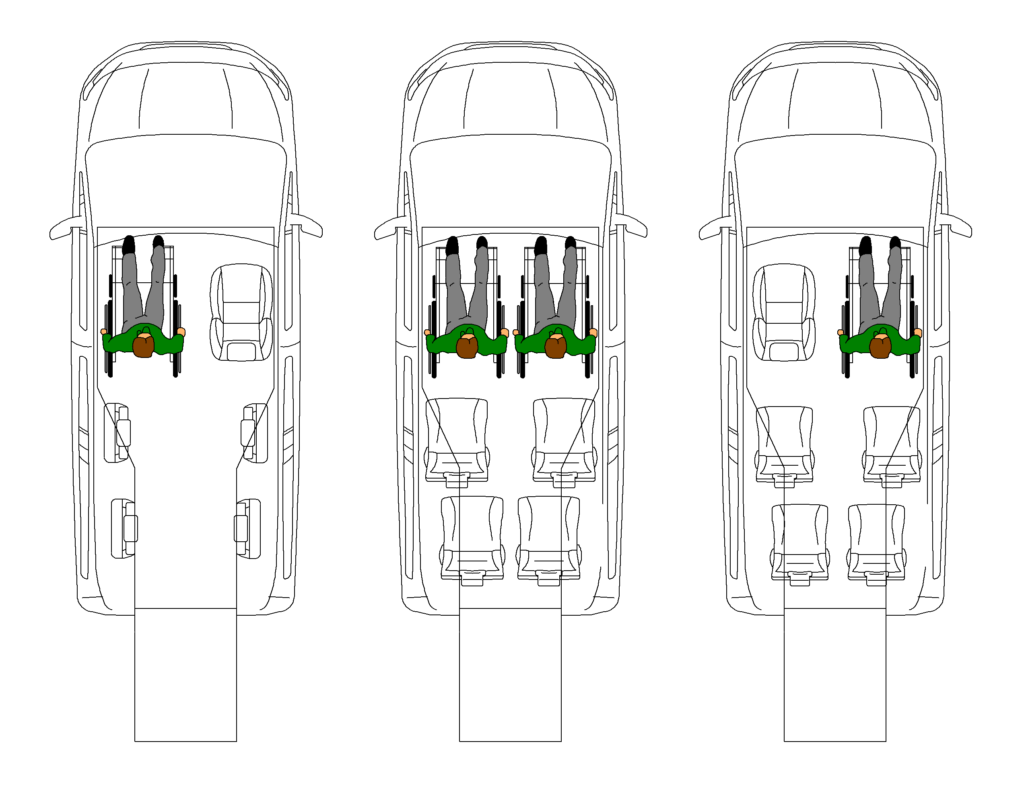

SEATING OPTIONS

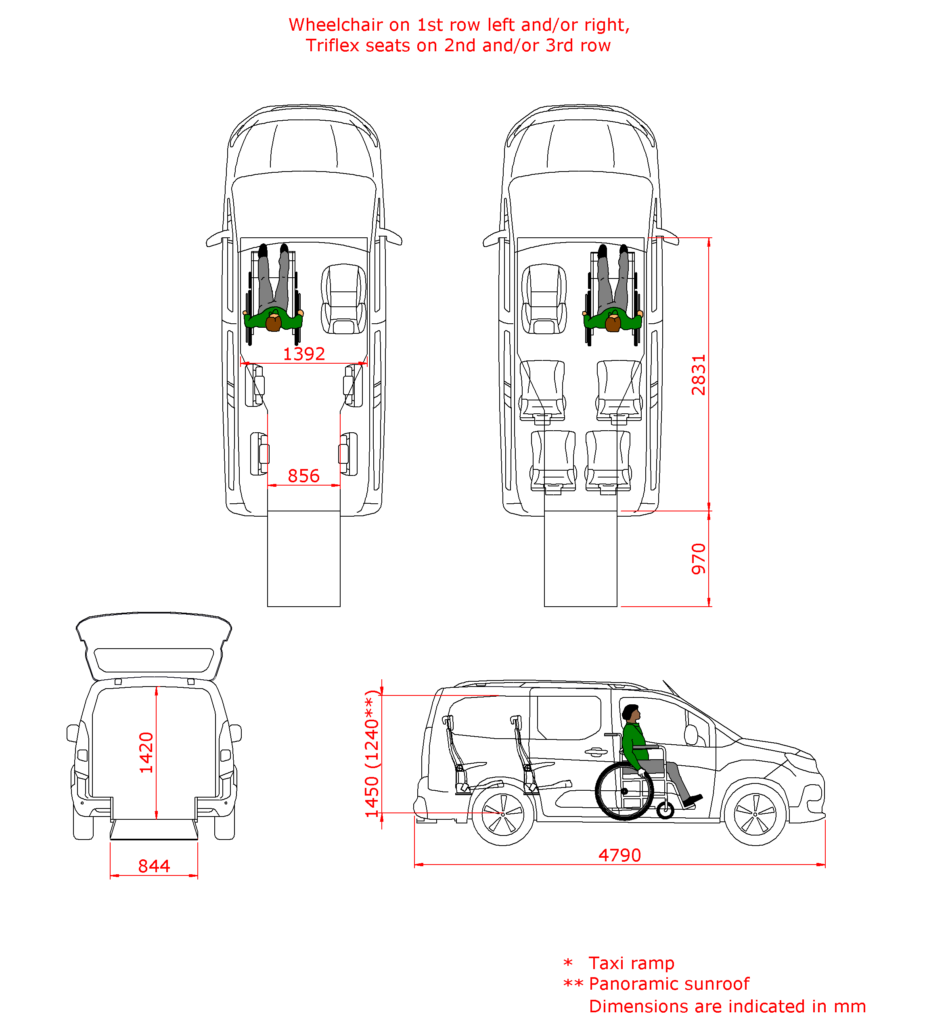

DIMENSIONS

STANDARD CONVERSION

  • Spacious lowered floor which extends to the front of the vehicle
  • Easy removable front seats on transportable wheels
  • New fuel tank of 11 gallons installed (51,5 litre)
  • New AdBlue tank installed if the vehicle is diesel
  • Adapted exhaust system
  • Double folding lightweight ramp allowing full view through the back window
  • LED lights at ramp entrance for better visibility
  • New rear springs fitted to improve driving experience
  • Center part of the rear bumper is replaced on hatch to maintain original design
  • Lowered floor fully covered with matching upholstery and stainless steel side plating in front
  • OEM hand brake replaced with electric parking brake

OPTIONS

  • 2 TriflexAIR foldable swivel seats on the second and/or third row
  • Automatic hatch and ramp with remote control
  • Wheelchair restraint; docking station and 4-point restraint
  • Original parking sensors remain functional after conversion
  • Various adaptations available to operate the car
